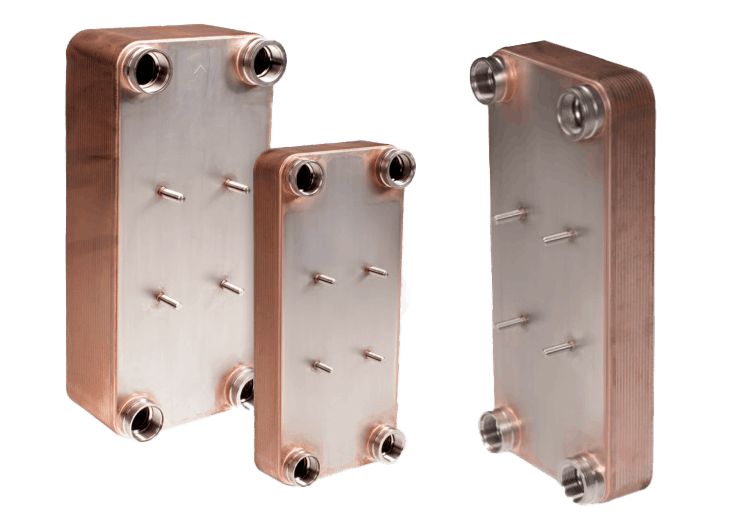

BPW / BPSW / BPS Brazed Plate TTP

Brazed Plate Exchangers

PRODUCT STYLE RATINGS BRAND
Heat Exchanger Brazed Plate 450 PSI / 437°F TTP

Series Overview

Configuration & Size

Plate Sizes:
8x3 to 28x10
Connections:
SAE, NPT, ISO-G, Solder, Victaulic
Options:
Foot Mounting Bracket
Brand:
TTP / Thermal Transfer

Materials of Construction

  • Plates: 316 Stainless Steel
  • Braze: Copper (Nickel option)
  • Connectors: 316 Stainless Steel
  • Stud Bolts: 304 Stainless Steel
  • Foot Bracket: Carbon Steel (optional)

Ratings

  • Max Working Pressure: 450 PSI (31 BAR)
  • Test Pressure: 650 PSI (44 BAR)
  • Max Temperature: 437°F (225°C)
  • Min Temperature: -320°F (-196°C)

Units
