Quotes - Engineering - SalesBPSW-110-20x5
Thermal Transfer Products| Heat Exchanger | Style | Ratings | Configuration |
|---|---|---|---|
| Brazed Plate | Brazed Plate | 437°F / 450 PSI | 20x5 |
-Download Datasheet

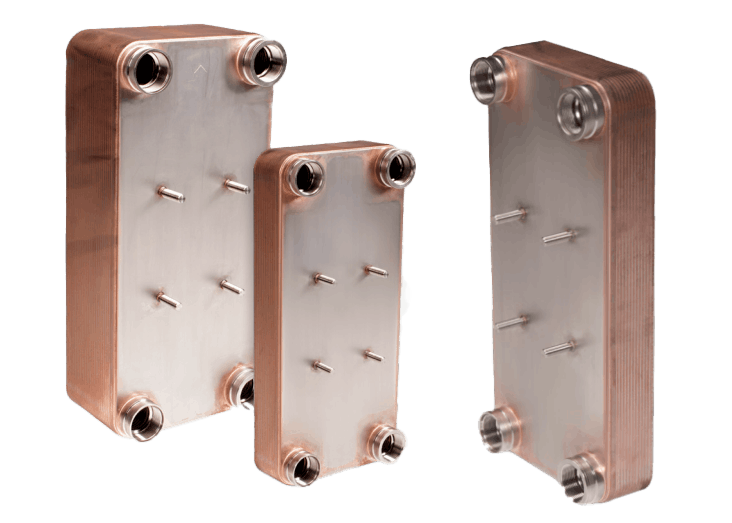

Note: Unit pictured is representative of standard unit and may not exactly depict p/n BPSW-110-20x5 as shown on this page.
Description
The BPSW-110-20x5 is an extra-high-capacity brazed plate heat exchanger with 110 stacked plates in the 20x5 configuration. Built with corrosion-resistant 316 stainless steel plates copper brazed for superior durability. It features #20 SAE oil ports and 1-1/4" NPT water ports. This model supports 450 PSI working pressure and operates up to 437°F. BPSW Series is the go-to solution for large-scale hydraulic and compressor cooling systems.
Product Overview
Part Number:
BPSW-110-20x5
Series:
BPSW
Brand:
Thermal Transfer Products
Configuration & Size
Connection F1:
#20 SAE
Connection F2:
1-1/4" NPT
Connection F3:
#20 SAE
Connection F4:
1-1/4" NPT
Number of Plates:
110
Materials of Construction
- Braze Material: Copper
- Connections: 316 Stainless Steel
- Plate Material: 316 Stainless Steel
Rating
- Maximum Operating Temperature: 437°F
- Maxiumum Working Pressure: 650 PSI
- Minimum Operating Temperature: -3°F
- Test Pressure: 450 PSI
