Thermal Transfer Products| Product | Style | Ratings | Configuration |
|---|---|---|---|
| Heat Exchanger | Shell & Tube | 300PSI/300F | Four Pass |
-Download
Datasheet

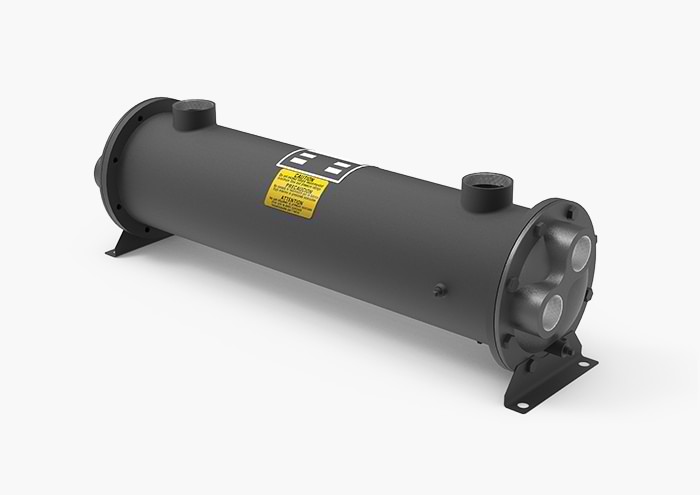

Note: Unit pictured is representative of standard unit and may not exactly depict p/n SSCM-1248-2.5-6-F as shown on this page.
Description
This TTP SSCM-1248-2.5-6-F shell and tube heat exchanger is an all stainless fluid cooler constructed with SAE O-Ring Shell side connections x NPT Tubeside connections. This Four-pass configuration offers reliable heat transfer for a variety of cooling applications. The fixed tubesheet design has a 6.25-inch diameter steel shell, 0.375-inch stainless steel tubes, stainless steel tubesheet, and stainless end bonnets. This unit has a maximum working shell pressure of 300 PSI, tube pressure of 150 PSI, and maximum operating temperature of 300F.
Product Overview
Part Number:
SSCM-1248-2.5-6-F
Series:
SSCM-1248
Brand:
TTP / Thermal Transfer
Configuration & Size
Size:
6.25" Diameter Shell x 48" Tube Length
Baffle Spacing:
2.5" Baffles
Cooling Tube Diameter:
0.375" Tubing
Tube Side Passes:
Four Pass
Materials of Construction
- Tubes: 316 Stainless Steel
- Tubesheet: 316 Stainless Steel
- Shell: 316 Stainless Steel
- End Bonnets: 316 Stainless Steel
- Namplate: Aluminum
Max Rating
- Shell Pressure: 300 PSI
- Tube Side Pressure: 150 PSI
- Temperature: 300F
