Quotes - Engineering - SalesSSA-1624-2-6-O
Thermal Transfer Products| Product | Style | Ratings | Configuration |
|---|---|---|---|
| Heat Exchanger | Shell & Tube | 225PSI/450F | One Pass |
-Download
Datasheet

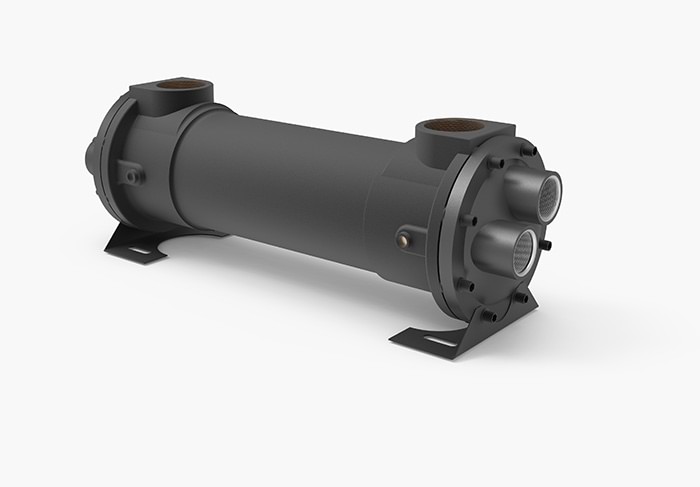

Note: Unit pictured is representative of standard unit and may not exactly depict p/n SSA-1624-2-6-O as shown on this page.
Description
As a member of the SSA Series from TTP, the SSA-1624-2-6-O 1-pass exchanger has a 8 inch diameter shell, 24 inch tube length with 0.375" tubes. This unit has a maximum working shell pressure of 225 PSI, tube pressure of 150 PSI and a maximum operating temperature of 450F. The SSA series also comes stnadard with all 316 stainless steel construction.
Product Overview
Part Number:
SSA-1624-2-6-O
Series:
SSA
Brand:
Thermal Transfer
Configuration & Size
Size:
8" Diameter Shell x 24" Tube Length
Baffle Spacing:
2" Baffles
Cooling Tube Diameter:
0.375" Tubing
Tube Side Passes:
One Pass
Materials of Construction
- Tubes: 316 Stainless Steel
- Hub & Tubesheet: 316 Stainless Steel
- Shell: 316 Stainless Steel
- End Bonnets: 316 Stainless Steel
- Namplate: Aluminum
Rating
- Maximum Shell Pressure: 225 PSI
- Maximum Tube Side Pressure: 150 PSI
- Maximum Temperature: 450F
