Quotes - Engineering - SalesC-1036-2-6-F-SS-SB-S
Thermal Transfer Products| Product | Style | Ratings | Configuraton |
|---|---|---|---|
| Heat Exchanger | Shell & Tube | 300 PSI / 300°F | Four Pass |
-Download Datasheet

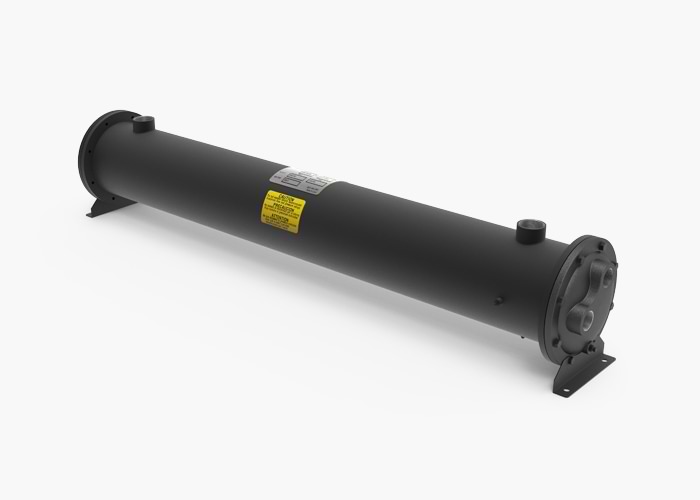

Note: Unit pictured is representative of standard unit and may not exactly depict p/n C-1036-2-6-F-SS-SB-S as shown on this page.
Description
Designed for tough industrial duty, this Four-pass shell and tube heat exchanger (the C-1036-2-6-F-SS-SB-S model) from the C Series delivers consistent performance. Suitable for hydraulic oil, water, and air cooling, it uses a durable fixed tubesheet design with 5.25"-inch diameter Steel shell, 0.375-inch 316 Stainless Steel tubes, 316 Stainless Steel tubesheet, and 316 Stainless Steel end bonnets and optional zinc anodes. Working pressures reach 300 PSI on the shell side and 150 PSI on the tube side, with a maximum temperature of 300°F.
Product Overview
Part Number:
C-1036-2-6-F-SS-SB-S
Series:
C-1036
Brand:
Thermal Transfer Products
Configuration & Size
Shell Diameter:
5.25"
Shell Length:
31"
Baffle Spacing:
2"
Cooling Tube Diameter:
0.375"
Overall Length:
40.81"
Shell Side Connection (Inlet):
1.5" NPT
Shell Side Connection (Outlet):
1.5" NPT
Tube Side Connections:
1.0" NPT
Tubeside Passes:
Four Pass
Materials of Construction
- Bonnets: 316 Stainless Steel
- Shell: Steel
- Tubes: 316 Stainless Steel
- Tubesheet: 316 Stainless Steel
- Zincs: Optional
- Name Plate: Aluminum
Rating
- Max Shell Pressure: 300 PSI
- Max Temperature: 300°F
- Max Tube Pressure: 150 PSI
