Thermal Transfer Products| Product | Style | Ratings | Configuraton |
|---|---|---|---|
| Heat Exchanger | Shell & Tube | 300 PSI / 300°F | Two Pass |
-Download Datasheet

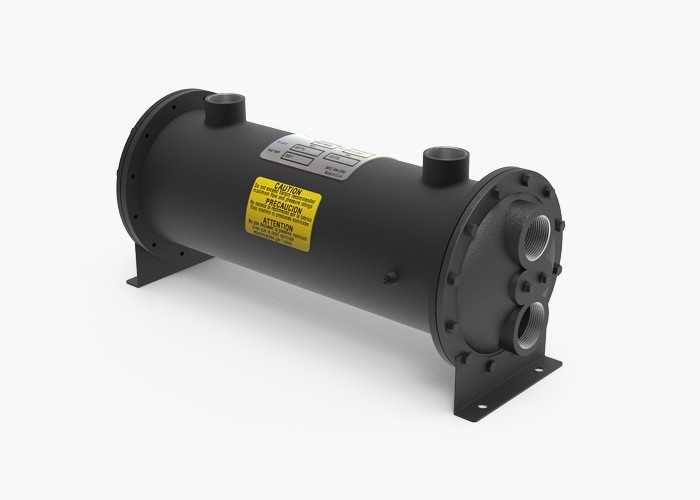

Note: Unit pictured is representative of standard unit and may not exactly depict p/n C-1014-3-6-T as shown on this page.
Description
This C-1014-3-6-T shell and tube heat exchanger is an industrial fluid cooler from the C Series line of coolers. Two-pass configuration offers reliable heat transfer for hydraulic oil, water, and compressed air applications. The rugged fixed tubesheet design has a 5.25"-inch diameter Steel shell, 0.375-inch Copper tubes, Steel tubesheet, and Cast Iron end bonnets, with optional zinc anodes. It is rated for a maximum shell pressure of 300 PSI, tube pressure of 150 PSI, and maximum operating temperature of 300°F.
Product Overview
Part Number:
C-1014-3-6-T
Series:
C-1014
Brand:
Thermal Transfer Products
Configuration & Size
Shell Diameter:
5.25"
Shell Length:
9"
Baffle Spacing:
3"
Cooling Tube Diameter:
0.375"
Overall Length:
18.62"
Shell Side Connection (Inlet):
1.5" NPT
Shell Side Connection (Outlet):
1.5" NPT
Tube Side Connections:
1.5" NPT
Tubeside Passes:
Two Pass
Materials of Construction
- Bonnets: Cast Iron
- Shell: Steel
- Tubes: Copper
- Tubesheet: Steel
- Zincs: Optional
- Name Plate: Aluminum
Rating
- Max Shell Pressure: 300 PSI
- Max Temperature: 300°F
- Max Tube Pressure: 150 PSI
