Thermal Transfer Products| Product | Style | Ratings | CONFIGURATION |
|---|---|---|---|
| Heat Exchanger | Shell & Tube | 300PSI/300F | One Pass |
-Download
Datasheet

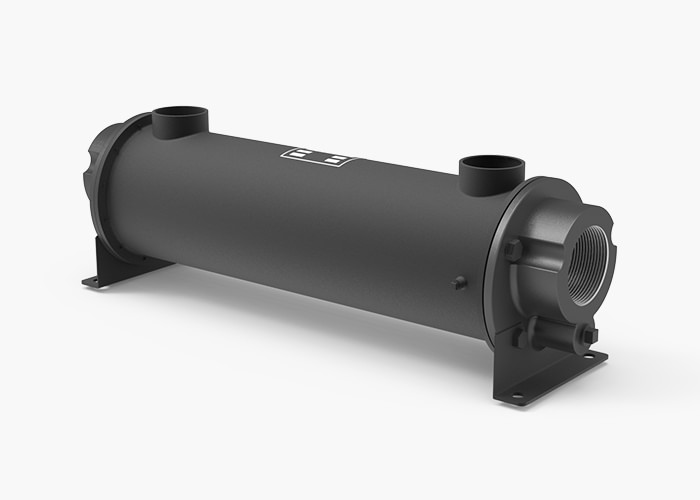

Note: Unit pictured is representative of standard unit and may not exactly depict p/n HC-824-1.7-4-O as shown on this page.
Product Overview
Part Number:
HC-824-1.7-4-O
Series:
HC-824
Brand:
Thermal Transfer
Configuration & Size
Size:
4" Diameter Shell x 24" Tube Length
Connections:
NPT Shell Side / NPT Tube Side
Baffle Spacing:
1.7" Baffles
Cooling Tube Diameter:
0.25" Tubing
Tube Side Passes:
One Pass
Materials of Construction
- Tubes: Copper
- Tubesheet: Steel
- Shell: Steel
- End Bonnets: Cast Iron
- Zincs: Optional
- Namplate: Aluminum
Rating
- Maximum Shell Pressure: 300 PSI
- Maximum Tube Side Pressure: 150 PSI
- Maximum Temperature: 300F
