Quotes - Engineering - SalesHC-624-2-4-T-SS
Thermal Transfer Products| Product | Style | Ratings | CONFIGURATION |
|---|---|---|---|
| Heat Exchanger | Shell & Tube | 300PSI/300F | Two Pass |
-Download
Datasheet

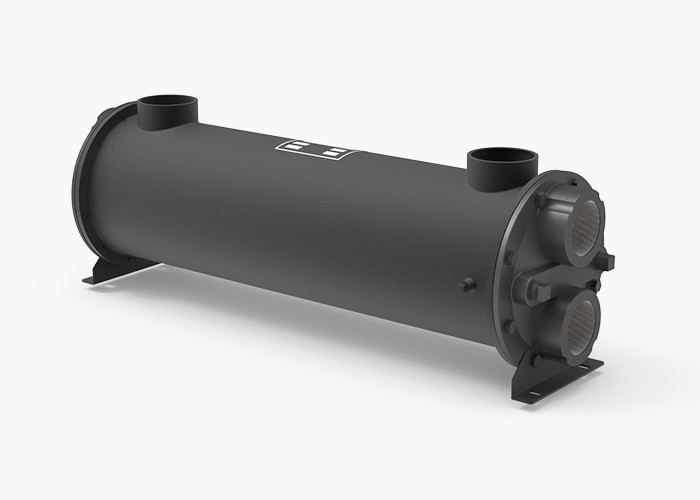

Note: Unit pictured is representative of standard unit and may not exactly depict p/n HC-624-2-4-T-SS as shown on this page.
Product Overview
Part Number:
HC-624-2-4-T-SS
Series:
HC-624
Brand:
Thermal Transfer
Configuration & Size
Size:
3" Diameter Shell x 24" Tube Length
Connections:
NPT Shell Side / NPT Tube Side
Baffle Spacing:
2" Baffles
Cooling Tube Diameter:
0.25" Tubing
Tube Side Passes:
Two Pass
Materials of Construction
- Tubes: 316 Stainless Steel
- Tubesheet: Steel
- Shell: Steel
- End Bonnets: Cast Iron
- Zincs: Optional
- Namplate: Aluminum
Rating
- Maximum Shell Pressure: 300 PSI
- Maximum Tube Side Pressure: 150 PSI
- Maximum Temperature: 300F
